Certified methodology Use of Thermography for Diagnostics of Transport Infrastructure Structures

Certified methodology Use of Thermography for Diagnostics of Transport Infrastructure Structures

Regular price €0,00
Regular price Sale price €0,00
Sale Sold out
Tax included.

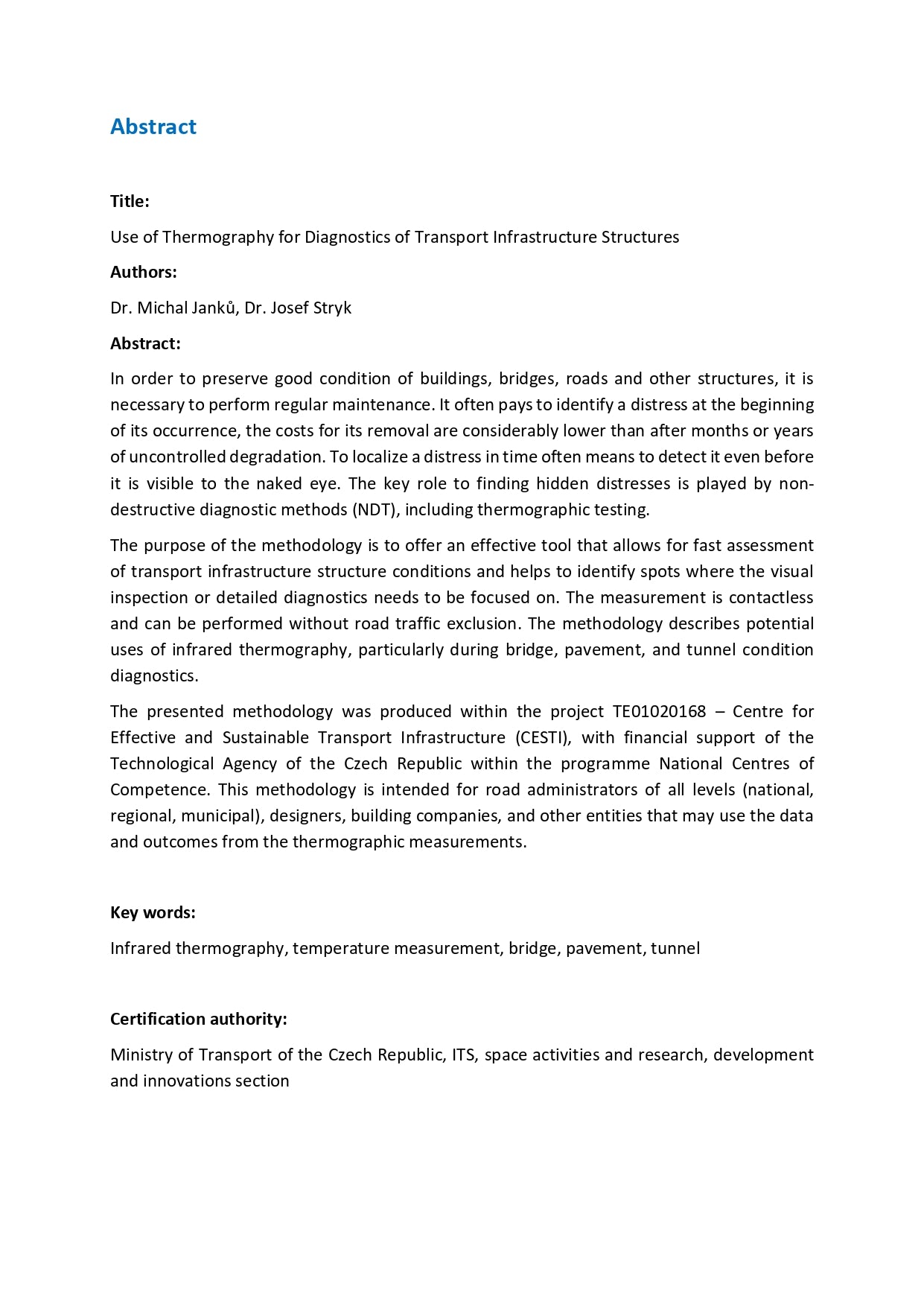

The purpose of the methodology is to offer an effective tool that allows for fast assessment of transport infrastructure structure conditions and helps to identify spots where the visual inspection or detailed diagnostics needs to be focused on. The measurement is contactless and can be performed without road traffic exclusion. The methodology describes potential uses of infrared thermography, particularly during bridge, pavement, and tunnel condition diagnostics.

The presented methodology was produced within the project TE01020168 – Center for Effective and Sustainable Transport Infrastructure (CESTI), with financial support of the Technological Agency of the Czech Republic within the program National Centers of Competence.

View full details

Detail

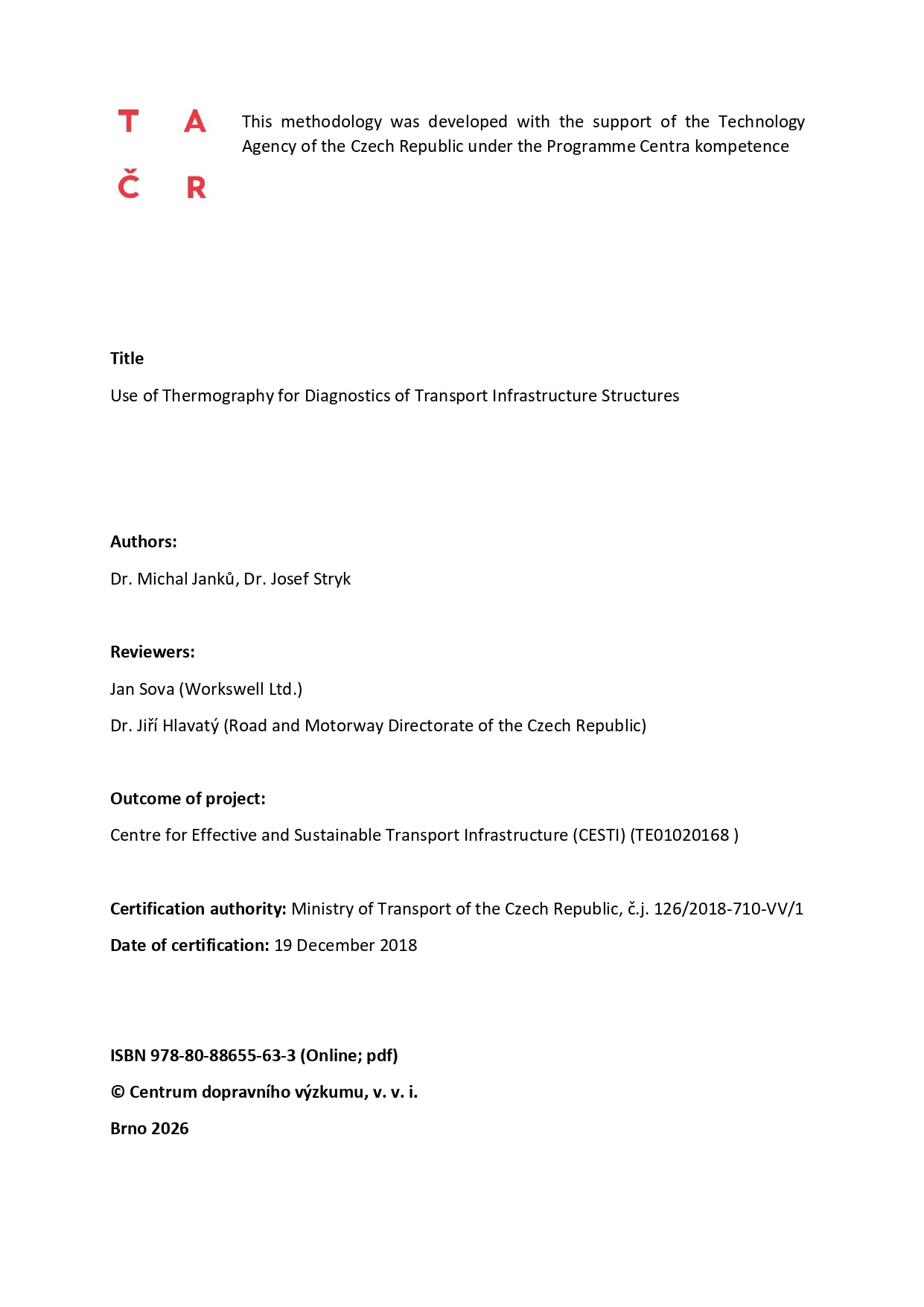

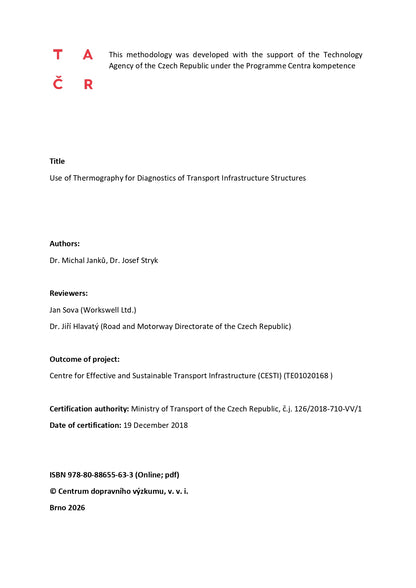

Author

  • Janků M.
  • Stryk J.

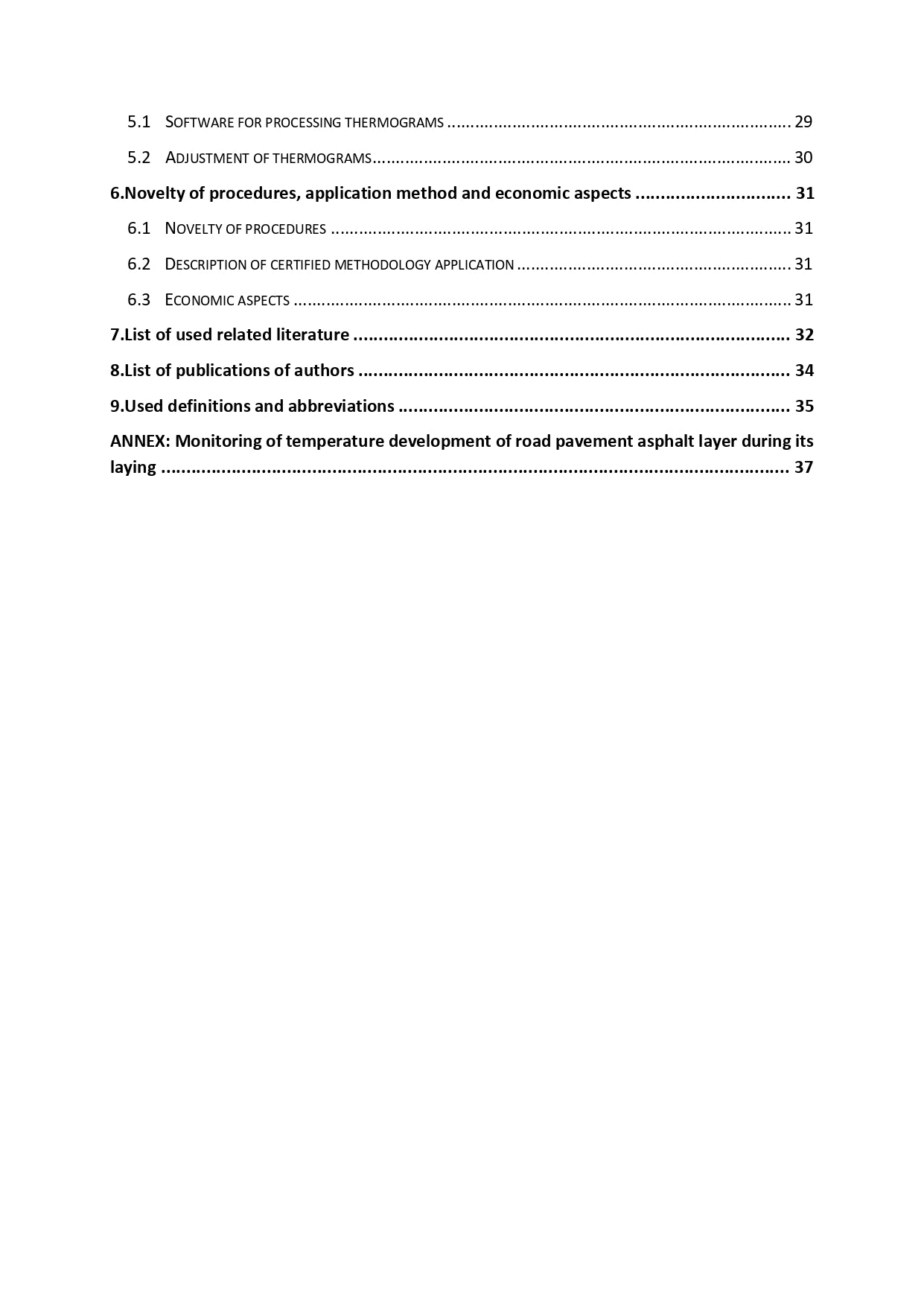

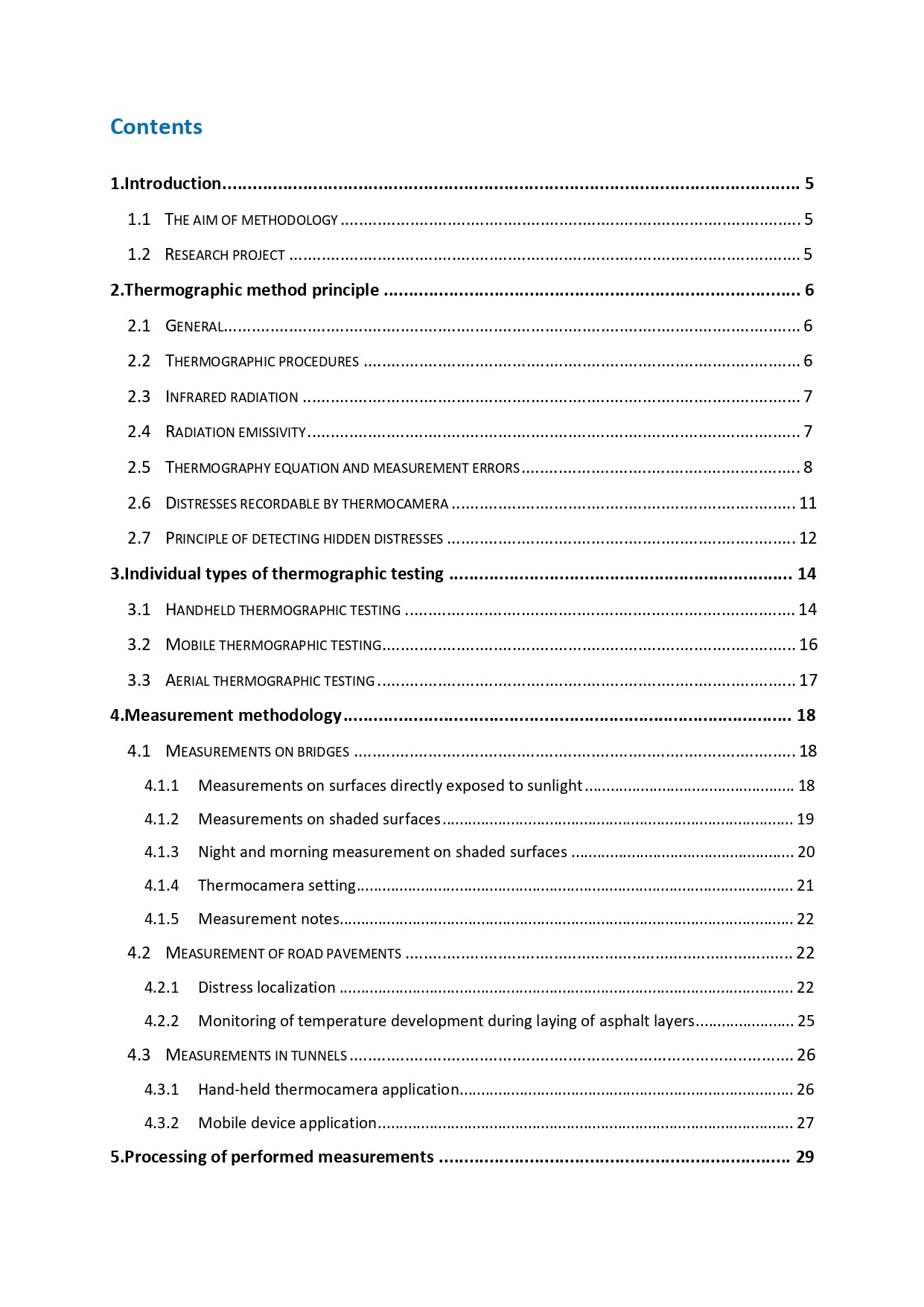

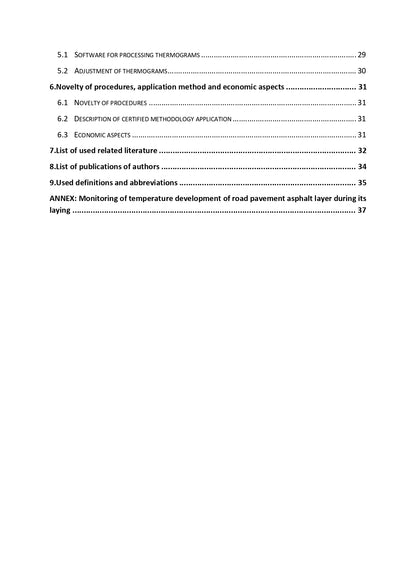

Content

1. Introduction
1.1 THE AIM OF METHODOLOGY
1.2 RESEARCH PROJECT
2. Thermographic method principle
2.1 GENERAL
2.2 THERMOGRAPHIC PROCEDURES
2.3 INFRARED RADIATION
2.4 RADIATION EMISIVITY
2.5 THERMOGRAPHY EQUATION AND MEASUREMENT ERRORS
2.6 DISTRESSES RECORDABLE BY THERMOCAMERA
2.7 PRINCIPLE OF DETECTING HIDDEN DISTRESSES

3. Individual types of thermographic testing
3.1 HANDHELD THERMOGRAPHIC TESTING
3.2 MOBILE THERMOGRAPHIC TESTING
3.3 AERIAL THERMOGRAPHIC TESTING

4. Measurement methodology
4.1 MEASUREMENTS ON BRIDGES
4.2 MEASUREMENT OF ROAD PAVEMENTS
4.3 MEASUREMENTS IN TUNNELS

5. Processing of performed measurements
5.1 SOFTWARE FOR PROCESSING THERMOGRAMS
5.2 ADJUSTMENT OF THERMOGRAMS

6. Novelties of procedures, application methods and economic aspects
6.1 NOVELTIES OF PROCEDURES
6.2 DESCRIPTION OF CERTIFIED METHODOLOGY APPLICATION
6.3 ECONOMIC ASPECTS

Dedication

The methodology was co-financed from the state budget by the Technology Agency of the Czech Republic under the program National Centers of Competence, within the project TE01020168 – Center for Effective and Sustainable Transport Infrastructure (CESTI).
